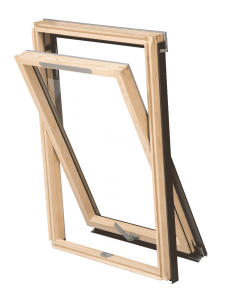

The centre pivot pine ventilated window is the available in numerous sizes this centre pivot window is the perfect daylight solution with the added benefit of a simple click open and shut trickle vent positioned at the top of the frame, once opened the inset mesh will allow fresh, clean air into the room while the window may remain safely and securely shut.
With Sleek Scandinavian pine frames it allows maximum daylight and like other Duratech windows the DVX sits recessed into the roof giving a smoother, flush effect.
Centre Pivoting with an elegant handle positioned at the bottom of the window.
Scandinavian Pine frames are treated with insecticide and fungicide for maximum protection.
Trickle vents can be clicked open or left shut with just a simple push and click.
MEASURMENTS
| CODE | NOMINAL SIZE | VISIBLE GLASS | EFFECTIVE LIGHT AREA |
|---|---|---|---|
| DVXC2A | 55 x 78 cm | 37.3 x 59 cm | 0.22 m2 |
| DVXC4A | 55 x 98 cm | 37.3 x 79 cm | 0.295 m2 |
| DVXF6A | 66 x 118 cm | 48.3 x 99 cm | 0.478 m2 |
| DVXM4A | 78 x 98 cm | 60.3 x 79 cm | 0.476 m2 |
| DVXM6A | 78 x 118 cm | 60.3 x 99 cm | 0.597 m2 |
| DVXM8A | 78 x 140 cm | 60.3 x 121 cm | 0.729 m2 |
| DVXS6A | 114 x 118 cm | 96.3 x 99 cm | 0.953 m2 |
Technical Information
Suitable for roof pitches 15 to 90 degrees
Scandinavian Pine Centre Pivoted
Toughened outer pane
24mm double glazing, filled with argon gas
Thermal Transmittance
Plain Tile flashing available singly or in combination
Slate flashings available singly or in combination
Tile flashings available singly or in combination
Universal flashing available singly or in combination
